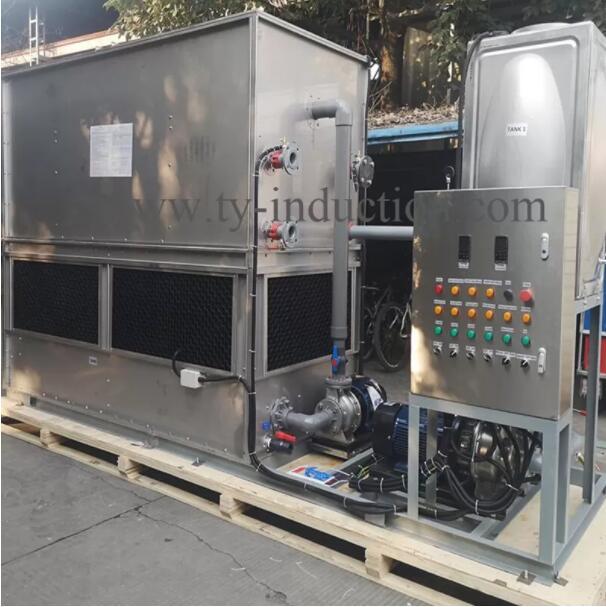

closed loop water cooling system
What is closed-loop cooling?
A closed-loop water cooling system maintains optimal temperatures inside a sealed enclosure while keeping warm ambient air, moisture, dust and other airborne contaminants out. By circulating cool, clean air within the electrical enclosure (and through the heat-generating components), closed-loop cooling systems help protect sensitive electronic components and extend their life. In a typical closed-loop air conditioner, heat is transferred from the enclosure components by circulating air around and through them. The air is then cooled, dehumidified and returned to the enclosure without allowing air from outside the enclosure to enter. Heat is removed from the air inside the air conditioning unit and discharged through the vapor compression refrigeration cycle.
Specification：
Model：TY-35/110T
Power Input：380v, 3ph, 50hz
Cooling Capacity：175，000/550,000 kcal/h
Fan Power：4kw x2
Fan Air Flow：80000 m3/h x 2
Spray Pump：3kw, 150m3/h, 5m
Main Pump：15kw, 100m³/h, 36m (for Inductors or transformer)7.5kw, 50m³/h, 32m (for induction power supply)
Inlet/Outlet：DN125/DN80
Working Pressure：0.1 to 0.3 MPa
closed loop water cooling system Features:
● Ensure reliability of machine as well as easy to prepare and installation
● No need does any civil work. Just connect water pipes
● Closed-cycle cooling water and no impurity, ensure the purity of cooling water
● Stainless steel pump and stainless-steel pipe connection avoid rusting, ensures cooling water clean in the system.
● Small space required, easy to install.
● Operation is simple and reliable.
● Cooling water tank and DI water tank use stainless steel avoid rusting
